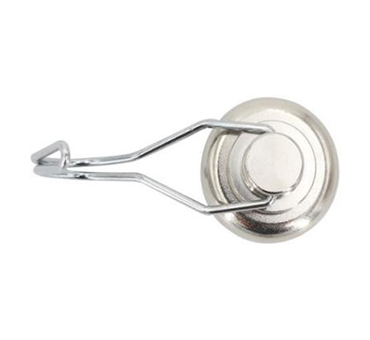

Swivel Magnetic Hook

Swivel magnetic hook refers to a type of hook magnets that has a swivel hook, the core of which consists of neodymium-iron-boron.

  • swivel magnetic hook
  • swivel magnetic hook souwest magnetech

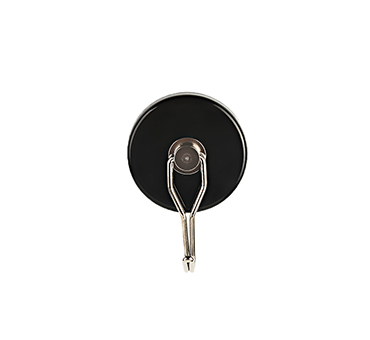

  • swivel magnetic hook swfg

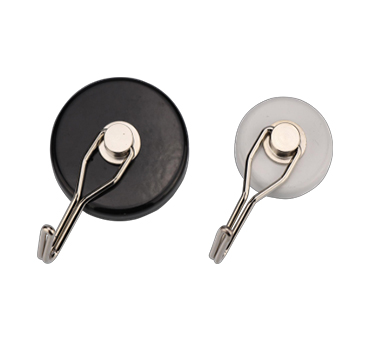

  • arrow magnetic hooks swfg souwest magnetech
  • swivel magnetic hook
  • swivel magnetic hook souwest magnetech
  • swivel magnetic hook swfg
  • arrow magnetic hooks swfg souwest magnetech

Function of Rare Earth Magnetic Hook

A powerful rare earth magnet is embedded in a steel pot, which made a neodymium magnet with a steel pot and swivel hook. As the pot shields the magnetic field, it allows the magnetic field of the magnet hook to gather on the other side and the magnetic force to be more concentrated. For optimum adhesion, the pot magnet must rest directly on the metal surface.


Features of Swivel Magnetic Hook

The hooks are located on the back of the magnetic plate and can be swiveling. The maximum working temperature is 80°C.

They are used in a wide range of applications, from small office and domestic use to heavy industry and mechanical engineering assembly processes.


Specification of Swivel Magnetic Hook


SWFG Series magnetic hook is made from Ferrite magnets and a swivel hook, with powder coating. Room working temperature.

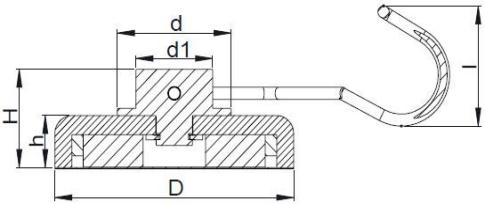

Swivel Magnetic Hook SWFG Line Drawing


Model No

Dimension (mm)

Weight (g)

Vertical force (Kg)

Side force (kg)


D

d

d1

H

h

I




SWFG36

36

16

10.8

14.5

8.3

20

50

4.2

1.7

SWFG52

52

16

10.8

14.5

8.3

20

80

7.4

2.5





SWNG Series magnetic hook is made from NdFeB magnets and a swivel hook, with Ni coating. Room working temperature.

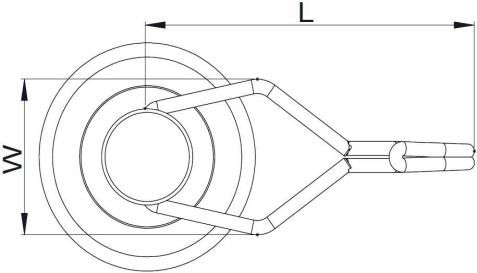

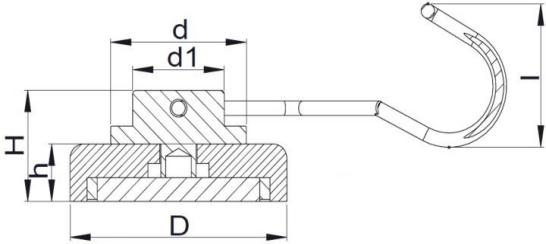

Swivel Magnetic Hook Line DrawingLine Drawing Swivel Magnetic Hook

Model No

Dimension (mm)

Weight (g)

Vertical force (Kg)

Side force (kg)

D

d

d1

h

H

L

W

I

SWNG25

25

20

14

8

15.5

54

23

24

38

17

3.5

SWNG32

32

20

14

8

15.5

54

23

24

52

30

5.5

SWNG36

36

20

14

8

15.5

54

23

24

65

40

6.5

SWNG42

42

20

14

8.6

16.1

54

23

24

92

60

8
