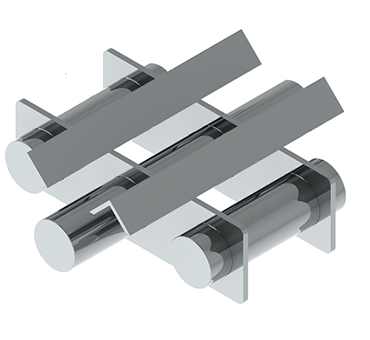

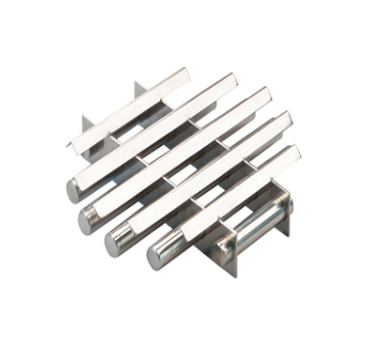

Hopper Magnets TRS

Magnetic filter bars for round hopper can add baffles.

  • grate magnets trs
  • grate magnets trs souwest magnetech
  • souwest magnetech grate magnets trs
  • grate magnets trs
  • grate magnets trs souwest magnetech
  • souwest magnetech grate magnets trs

Specification of Hopper Magnets TRS


Hopper Magnets for different round hopper, single layer from sus304 stainless steel and ferrite magnets

tube diameter 25mm,  Magnetic strength and  Max working temperature as followed:


□3000GS + 150℃.   □6000GS+ 80℃.   □6000GS+ 150℃ □10000GS+ 80℃.   □10000GS+ 150℃

With Baffle   □ Yes     □ No

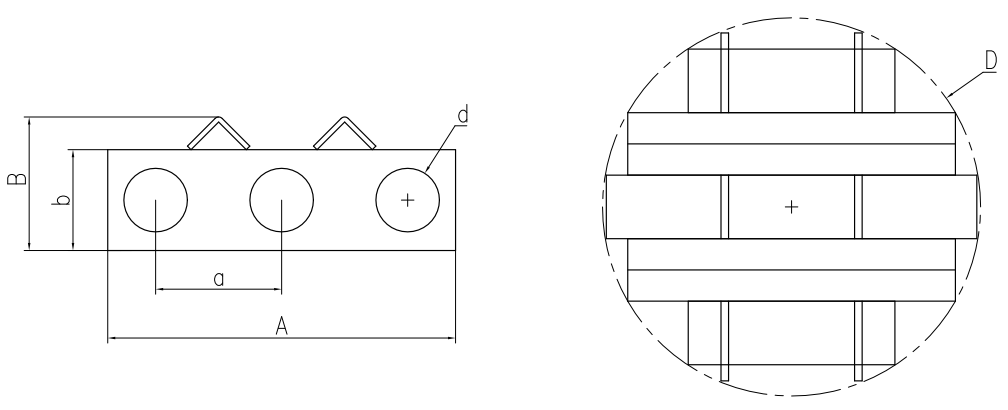

Hopper Magnets TRS Line Drawing

Model No.

Dimension(mm)

Bar Qty (pcs)

Code No

Sketch

A

a

B

b

d

D

TRS-9

88

50

53

40

25

100

2

5090090001

Hopper Magnets TRS9

TRS-10

138

50

53

40

25

150

3

5060090002

Hopper Magnets TRS10

TRS-11

185

50

53

40

25

200

4

5090090003

Hopper Magnets TRS11

TRS-12

234

50

53

40

25

250

5

5090090004

Hopper Magnets TRS12

TRS-13

284

50

53

40

25

300

6

5090090005

Hopper Magnets TRS13
