Magnet with Eye Bolt

Magnet with eye bolt, also called magnetic hook eyebolt is made from NdFeB--the world's strongest magnet. NdFeB magnets provide a much stronger suction force than Ferrite magnets.

  • magnet with eye bolt swnf
  • magnet with eye bolt swnf

Structures of Magnet with Eye Bolt

This handy and practical powerful neodymium magnet with bolt has a powerful magnet embedded in a nickel coated steel pot to provide maximum gripping force. The steel pot provides protection for the magnet and concentrates the magnetic force on the magnet's surface. The pot magnet has a threaded male thread, ideal for mounting with bolts or screws.


Applications of Magnet with Eye Bolt

Because of its high magnetic energy and small size, the magnet with eye bolt is used in treasure hunting expeditions, river cleaning, etc. Also you may hear another name as a fishing magnet.

Specification of Magnet with Eye Bolt SWNF

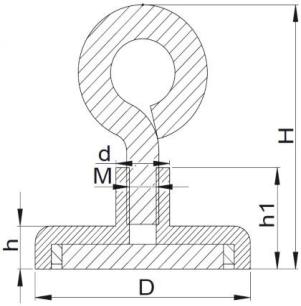

Magnet with Eye Bolt SWNF Line DrawingLine Drawing Magnet with Eye Bolt SWNF

Model No

Dimension (mm)

Weight (g)

Force (kg)

D

d

h

h1

H

M

SWNF10

10

6

5

12.5

33

M3

7

2

SWNF12

12

6

5

12.5

33

M3

8

4

SWNF16

16

6.5

5

12.6

34.6

M4

12

8

SWNF20

20

6.5

7

14

36

M4

21

12

SWNF25

25

7.5

8

17

44.5

M5

38

25

SWNF32

32

10

8

18

47.5

M6

63

34

SWNF36

36

10

8

18

47.5

M6

71

50

SWNF42

42

10

8.6

18

47.5

M6

106

72

SWNF48

48

12

11

24

60.5

M8

187

81

SWNF60

60

12

15

28

64.5

M8

367

160

SWNF75

75

17

18

35

91

M10

697

270
