Arrow Magnetic Hook SWNE

  • arrow magnetic hook swne
  • arrow magnetic hook swne

Specification of Arrow Magnetic Hook SWNE


SWNE Series magnetic hook is made from SWND pot magnets and hook, with Ni coating. Room working temperature.

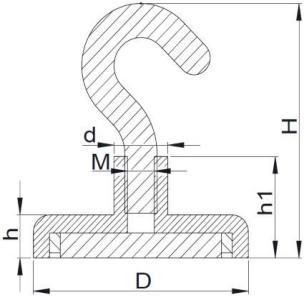

Arrow Magnetic Hook SWNE Line DrawingLine Drawing of Arrow Magnetic Hook SWNE


Model No

Dimension (mm)

Weight (g)

Force (kg)

D

d

h

h1

H

M

SWNE10

10

6

5

12.5

33

M3

6

2

SWNE12

12

6

5

12.5

33

M3

7

4

SWNE16

16

6.5

5

12.6

35

M4

12

8

SWNE20

20

6.5

7

14

36

M4

21

12

SWNE25

25

7.5

8

17

45

M5

37

25

SWNE32

32

10

8

18

48

M6

61

34

SWNE36

36

10

8

18

48

M6

69

50

SWNE42

42

10

8.6

18

48

M6

101

72

SWNE48

48

12

11

24

61

M8

182

81

SWNE60

60

12

15

28

64.5

M8

362

160

SWNE75

75

17

18

35

81

M10

681

270
