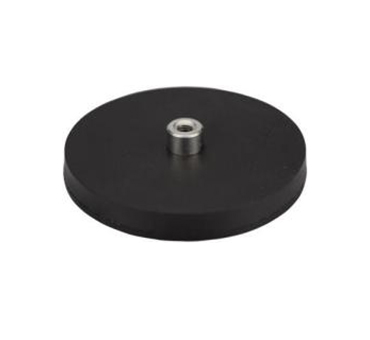

Rubber Coated Pot Magnet STD

STD Series rubber covered magnets are made from NdFeB magnets and steel cups, rubber covered, a screwed bush, and at room working temperature.

  • rubber coated pot magnet std
  • rubber coated pot magnet std

Specification of Rubber Coated Pot Magnet STD

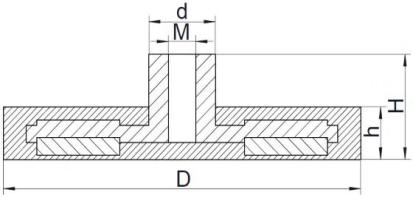

Rubber Coated Pot Magnet STD Line DrawingLine Drawing Rubber Coated Pot Magnet STD

Model No

Dimension (mm)

Weight (g)

Force (kg)

D

d

h

H

M

STD22

22

8

6

12

M4

12

5

STD34

34

8

8

14

M4

22

6

STD43

43

8

6

12

M4

33

8

STD66

66

12

8

14

M5

104

20

STD88

88

12

8.5

16

M8

200

42
