Magnet Threaded SWN1

SWN1 Series pot magnets are made from lathing copper cup and Neodymium magnets with female thread hole on back side. Room working temp.

  • magnet threaded swn1
  • magnet threaded swn1

Specification of Magnet Threaded SWN1

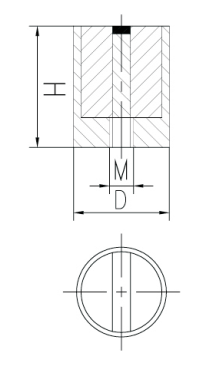

Magnet Threaded SWN1 Line Drawing

MODEL NO

Dimensions(mm)

Weight(g)

Force(kg)

D

H

M

SWN1-6

6

20

3

4

1

SWN1-8

8

20

3

7

2.5

SWN1-10

10

20

4

12

4.6

SWN1-13

13

20

4

20

7.1

SWN1-15

15

20

4

27

14.2

SWN1-16

16

20

4

30

15.3

SWN1-20

20

25

4

60

28.6

SWN1-25

25

35

5

135

45.9

SWN1-32

32

40

6

240

71.4
