Precast Concrete Shuttering Magnet

Precast concrete shuttering magnet as a new type of building material, mainly used in construction site precast concrete formwork systems.

  • precast concrete shuttering magnet sm

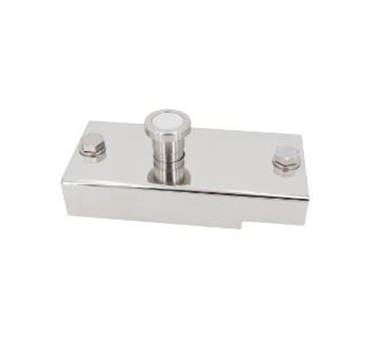

  • sm precast concrete shuttering magnet

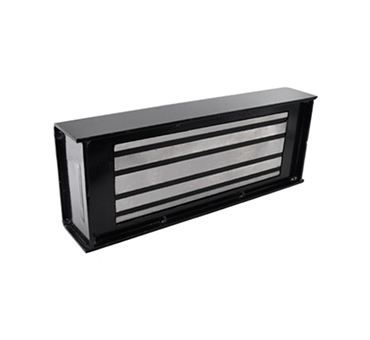

  • precast concrete shuttering magnet swnsw

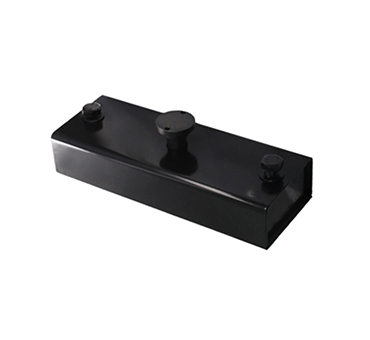

  • swnsw precast concrete shuttering magnet
  • precast concrete shuttering magnet sm
  • sm precast concrete shuttering magnet
  • precast concrete shuttering magnet swnsw
  • swnsw precast concrete shuttering magnet

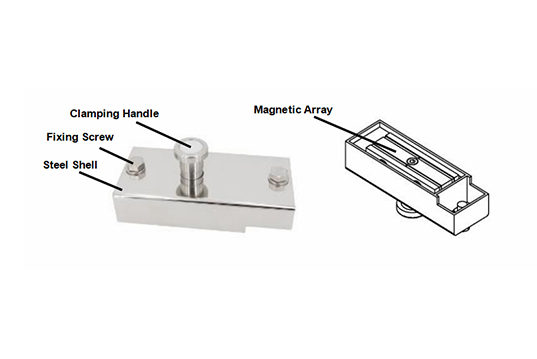

Features of Precast Concrete Shuttering Magnet

Features of Precast Concrete Shuttering Magnet

◆ Stainless steel wrapped magnet for protection

◆ The most powerful NdFeB material as the magnet

◆ The minimum pulling force of series products is 450KG, and the maximum can up to 3100KG.


How to Use the Precast Concrete Shuttering Magnet?

  • Place the shuttering magnet on the specific position of the stainless steel plate.

  • The shuttering magnet will be attached to the plate after pressing the clamping handle

  • A professional crowbar is used to pry the clamping handle. The magnetic force decreases with the increase of the air gap between the array and the plate.

  • The fixing screws can fix different types of side rails and blocks.

Different Models of Precast Concrete Shuttering Magnet

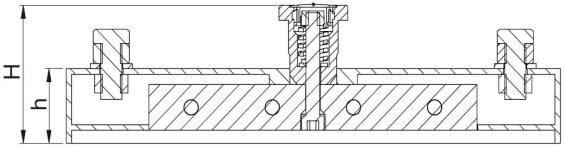

Line Drawing Precast Concrete Shuttering Magnet SM

Precast Concrete Shuttering Magnet SM Line Drawing



Model

Dimension (mm)

Weight (g)

Force (kg)

H

h

L

W

SM450

77

40

180

60

1700

450

SM600

77

40

170

60

1900

600

SM800

82

43

190

95

2700

800

SM1000

82

43

200

95

3100

1000

SM1350

88

60

320

90

5800

1350

SM1800

88

60

320

120

7200

1800

SM2100

88

60

320

120

7600

2100

SM2400

88

60

320

120

8200

2400

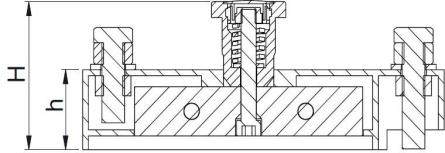

Precast Concrete Shuttering Magnet SM1 Line Drawing

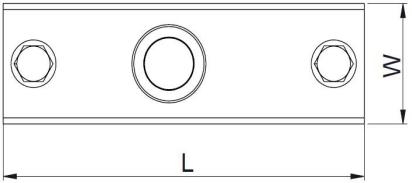

Line Drawing of Precast Concrete Shuttering Magnet SM1Precast Concrete Shuttering Magnet SM-1 Line Drawing Bottom



Model

Dimension (mm)

Weight (g)

Force (kg)

H

h

L

W

SM450-1

77

40

180

60

1700

450

SM600-1

77

40

170

60

1900

600

SM800-1

82

43

190

95

2700

800

SM1000-1

82

43

200

95

3100

1000

SM1350-1

88

60

320

90

5800

1350

SM1800-1

88

60

320

120

7200

1800

SM2100-1

88

60

320

120

7600

2100

SM2400-1

88

60

320

120

8200

2400

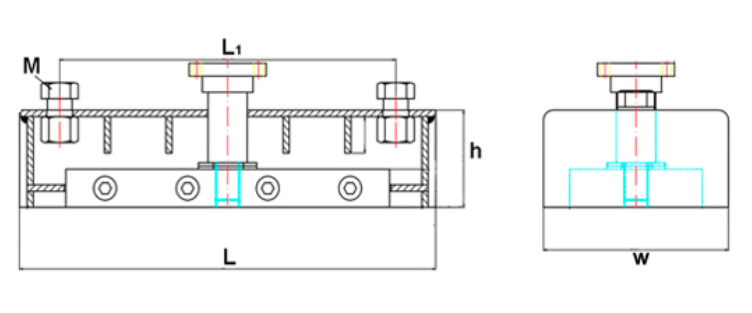

Precast Concrete Shuttering Magnet SWNSW Line Drawing


Model

Dimension(mm)

Weight (g)

Force (kg)

L

L1

h

W

M

SWNSW-600

170

120

54

70

12

2600

600

SWNSW-900

280

230

60

70

12

3700

900

SWNSW-1600

270

218

60

120

16

6700

1600

SWNSW-2100

320

270

60

120

16

7300

2100

SWNSW-2500

320

270

60

120

16

7600

2500

SWNSW-3100

320

270

60

160

16

11000

3100
