Metal Plate

Name: Metal Plate
Brand: NINGBO SOUWEST MAGNETECH DEVELOPMENT CO.,LTD.

Metal plates are used as spacers for mounting magnetic filter bars or other applications. Many sizes are available for your selection.

 Request A Quote

Neodymium Magnet
- Neodymium Block Magnet
- Ring Neodymium Magnet
- Arc Neodymium Magnet
- Neodymium Magnet with Countersunk Holes
- Cylinder Neodymium Magnet
- Neodymium Ball Magnet
Samarium Cobalt Magnets
Ferrite Magnets
AlNiCo Magnets
Rubber Magnets
Pot Magnets
- Countersunk Pot Magnet
- Shallow Pot Magnet
- Rectangular Pot Magnet
  - Rectangular Pot Magnet SWNI
  - Rectangular Pot Magnet SWF9
- Magnet Threaded
- Deep Pot Magnets
- Neodymium Pot Magnet
- Ferrite Pot Magnet
- Alnico Pot Magnet
- Rubber Coated Pot Magnet
- Pin Magnets
Magnetic Hooks
- Arrow Magnetic Hook
- Swivel Magnetic Hook
- Carabiner Magnet
- Magnet with Eye Bolt
- Plastic Magnetic Hooks
- Stainless Steel Magnetic Hook
Magnetic Clip
- Magnetic Clip SWFK36
- Magnetic Clip SWFK30
- Magnetic Clip SWNK29
Fishing Magnets
- Double Sided Fishing Magnet
- Strong Fishing Magnet
Formwork Magnets
- Precast Concrete Shuttering Magnet
- Insert Magnet
- Magnetic Steel Chamfer
Hopper Magnets
- Hopper Magnets SWRD
- Hopper Magnets SD1
- Hopper Magnets SD2
- Hopper Magnets SS1
- Hopper Magnets RS1
- Hopper Magnets TSS
- Hopper Magnets TRS
- Hopper Magnets SRM
Magnetic Filter Bar
Magnetic Trap
Magnetic Drawer
Overband Magnets
Auto Cleaning Grate Magnets
Auto Cleaning Magnetic Trap
Electromagnetic separator
Magnetic Sweeper
- Magnetic Sweeper SWMS
- Hang-type Magnetic Sweeper
- Magnetic Pickup Tool
- Magnetic Welding Holder
- Magnetic Tool Holder
- Permanent Magnet Lifter
Accessories
- Magnetic Motor Parts
- Shaped Hooks
- Metal Grappling Hook
- Fishing Magnet Accessories
- Metal Plate
- Rubber Shell
- Magnetic Name Badges

Specification of Metal Plate

Metal Plate with Ni Coating

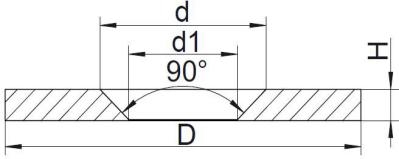

Metal Plate with Ni Coating Structure Metal Plate with Ni Coating Line Drawing

MODEL NO	Dimension(mm)				Weight (g)
MODEL NO	D	d	d1	H	Weight (g)
D12*1.5	12	8.4	5.4	1.5	0.9
D15*1.5	15	8.4	5.5	1.5	1.5
D18*1.5	18	8.4	5.5	1.5	2.7
D20*2	20	8.2	5	2	4.4
D23*1.5	23	8.4	5.5	1.5	4.4
D27*3	27	11.6	5.6	3	13.4
D32*3	32	11.6	5.6	3	17.6
D34*3	34	11.6	5.6	3	21.2
D42*3	42	11.6	5.6	3	32.4
D50*3	50	11.6	5.6	3	44.6
D62*3	62	11.6	5.8	3	61.9
