Hopper Magnets TSS

Hopper magnet for round hopper can add baffles.

  • grate magnets tss
  • souwest magnetech grate magnets tss
  • grate magnets tss
  • souwest magnetech grate magnets tss

Specification of Hopper Magnets TSS


Hopper Magnets for different round hopper, single layer from sus304 stainless steel and ferrite magnets

tube diameter 25mm, Magnetic strength and  Max working temperature as followed:


□3000GS + 150℃.   □6000GS+ 80℃.   □6000GS+ 150℃ □10000GS+ 80℃.   □10000GS+ 150℃

With Baffle   □ Yes     □ No

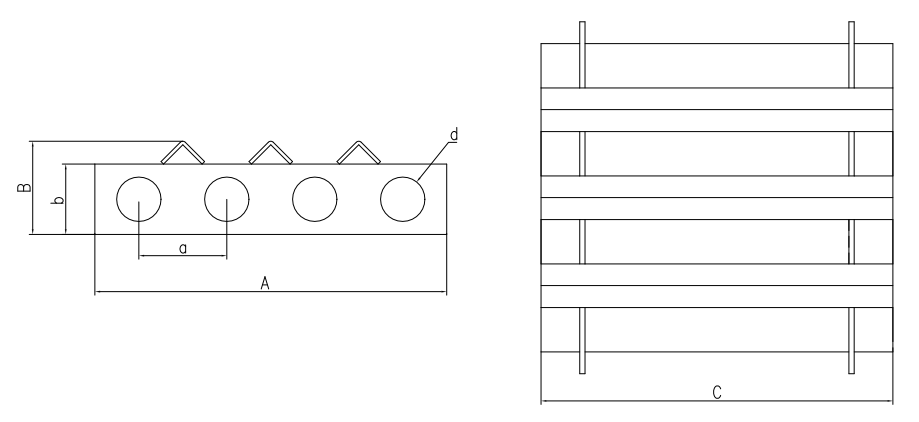

Hopper Magnets TSS Lline Drawing

Model No.

Dimension(mm)

Bar Qty (pcs)

Code No

Sketch

A

a

B

b

d

C

TSS-1

100

50

53

40

25

100

2

5090090019

Hopper Magnets TSS1

TSS-2

150

50

53

40

25

150

3

5090090006

Hopper Magnets TSS2

TSS-3

200

50

53

40

25

200

4

5090090007

Hopper Magnets TSS3

TSS-4

250

50

53

40

25

250

5

5090090008

Hopper Magnets TSS4

TSS-5

300

50

53

40

25

300

6

5090090009

Hopper Magnets TSS5
