Specifications of Different Magnetic Welding Holder Models

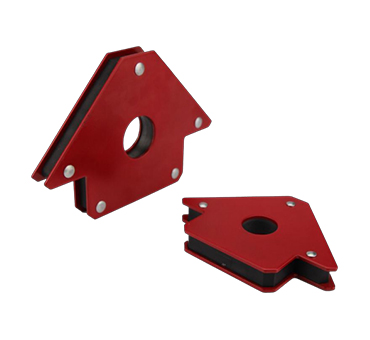

Magnetic welding holder-MWH

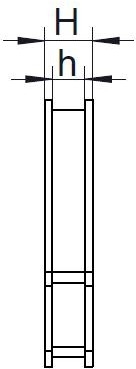

Magnetic Welding Holder-MWH StructureMagnetic Welding Holder MWH Structure Picture


Model

Dimension (mm)

Weight (g)

Force (Lb)

L

H

h (mm)

L1

L2

D

MWH25

83

15

10

14

70

22.5

328

25

MWH50

102

17

12

28

92

29

580

50

MWH75

122

25

20

38

112

46

1014

75

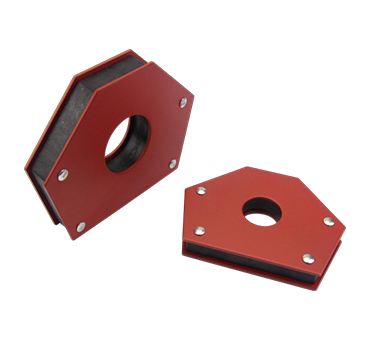

Magnetic welding holder-MWH-1

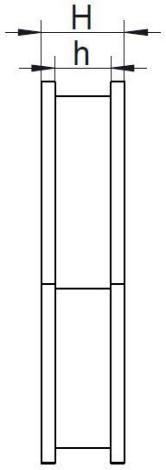

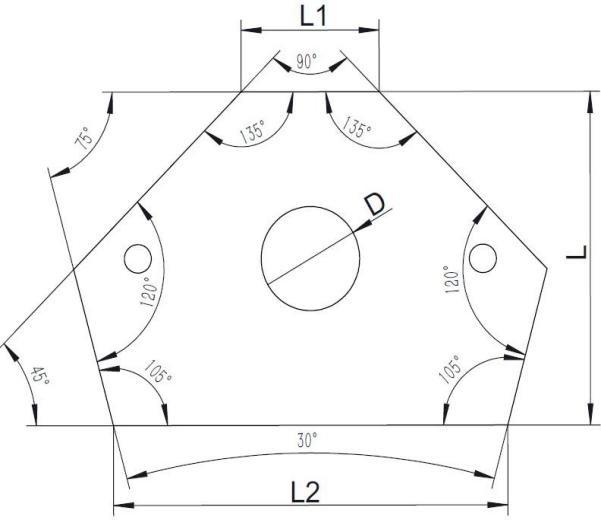

Magnetic Welding Holder MWH 1 StructureMagnetic Welding Holder MWH 1 Structure Picture


Model

Dimension (mm)

Weight (g)

Force (Lb)

L

H

h

L1

L2

D

MWH25-1

68

15

10

28

80

20

300

25

MWH50-1

91

17

12

44

90

30

550

50

MWH75-1

112

25

20

56

110

40

970

75





Magnetic welding holder-MWH-2

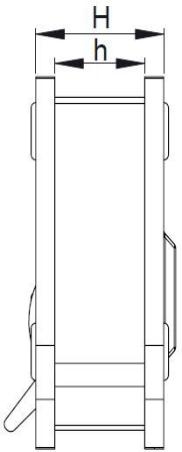

Magnetic Welding Holder MWH 2 StructureMagnetic Welding Holder MWH 2 Structure Picture


Model

Dimension (mm)

Weight (g)

Force (Lb)

L

L1

L2

H

h

MWH30-2

86

95

110

26

21

469

30

MWH55-2

118

130

150

33

28

983

55

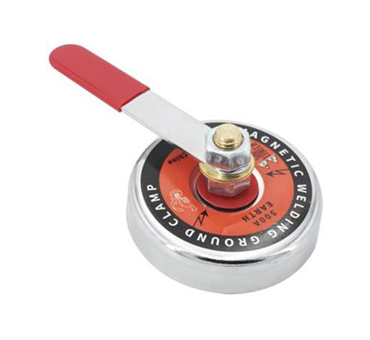

Magnetic welding holder-MWHD

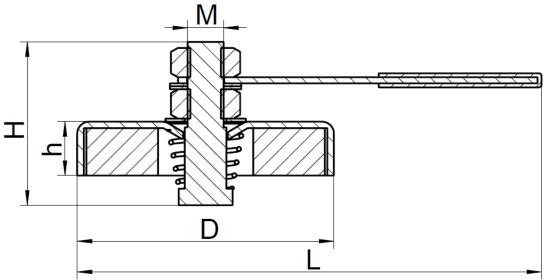

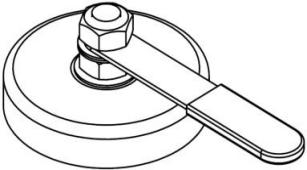

Magnetic Welding Holder MWHD StructureMagnetic Welding Holder MWHD Line Drawing


Model

Dimension (mm)

Weight (g)

Force (Lb)

D

H

h

L

M

MWHD55

55

41

12

140

M8

185

16

MWHD85

85

55

18

153

M12

585

65
