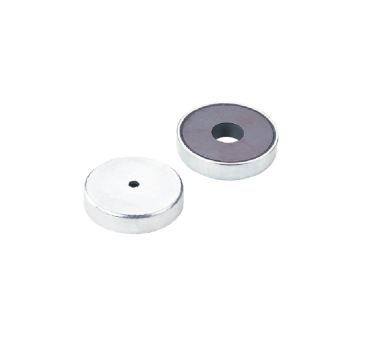

Shallow Pot Magnet SWF6

SWF6 Series pot magnets are made from stamped steel cups and Disc ferrite magnets, with a bore, Zn coating and plastic filled. Room working temperature.


  • shallow pot magnet swf6
  • shallow pot magnet swf6

Specification of Shallow Pot Magnet SWF6

Shallow Pot Magnet SWF6 Line Drawing

MODEL NO

Dimensions(mm)

Weight(g)

Force(N)

D

H

d1

d2

SWF6-13

13

4.5

3.3

5

3

6

SWF6-16

16

4.5

3.3

5

4

14

SWF6-20

20

6

3.3

5

8

26

SWF6-25

25

7

4

10

15

32

SWF6-32

32

7

4

10

25

65

SWF6-36

36

7.7

4

10

40

80

SWF6-40

40

8

5.5

12

50

90

SWF6-47

47

9

5.5

10

80

140

SWF6-50

50

10

5.5

18

95

180

SWF6-57

57

10.5

6.5

20

125

240

SWF6-63

63

14

6.5

20

200

300

SWF6-80

80

18

10.5

32

450

510

SWF6-100

100

22

10.5

32

800

800
