Hopper Magnets SS1

Single layer grate magnets for square hopper.

  • grate magnets ss1
  • grate magnets ss1
Request A Quote

Specification of Hopper Magnets SS1


Hopper Magnets for different Square hoppers, single layer from sus304 stainless steel and ferrite magnets

tube diameter 22mm, Tube diameter 22mm, Magnetic strength and  Max working temperature as followed:

□2700 GS + 150℃.   □6000GS+ 80℃.   □6000GS+ 150℃

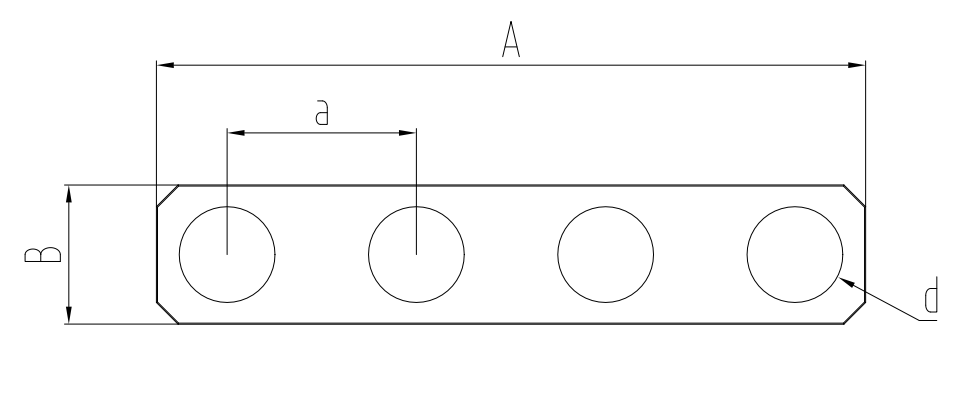

Hopper Magnets SS1 Line Drawing

Model No.

Dimension(mm)

Bar Qty (pcs)

Code No

A

a

B

d

SS1

163

43.5

32

22

4

5510210012
