Rubber Coated Pot Magnet STP

STP Series rubber covered magnets are made from NdFeB magnets and steel cups, rubber covered, a female thread. Room working temperature.

  • rubber coated pot magnet stp
  • rubber coated pot magnet stp

Specification of Rubber Coated Pot Magnet STP

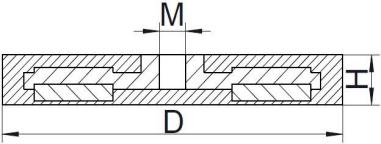

Rubber Coated Pot Magnet STP Line DrawingLine Drawing Rubber Coated Pot Magnet STP

Model No

Dimension (mm)

Weight (g)

Force (kg)

D

H

M

STP22

22

6

M4

11

4

STP34

34

8

M4

20

6

STP43

43

6

M4

29

8

STP66

66

8

M6

100

20

STP88

88

8.5

M8

186

42
