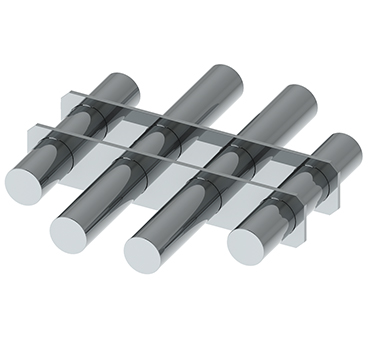

Hopper Magnets RS1

Single layer grate magnets for round hopper.

  • grate magnets rs1
  • grate magnets rs1

Specification of Hopper Magnets RS1


Hopper Magnets for different round hopper, single layer from sus304 stainless steel and ferrite magnets

tube diameter 22mm, Tube diameter 22mm, Magnetic strength and  Max working temperature as followed:


□2700 GS + 150℃.   □6000GS+ 80℃.   □6000GS+ 150℃

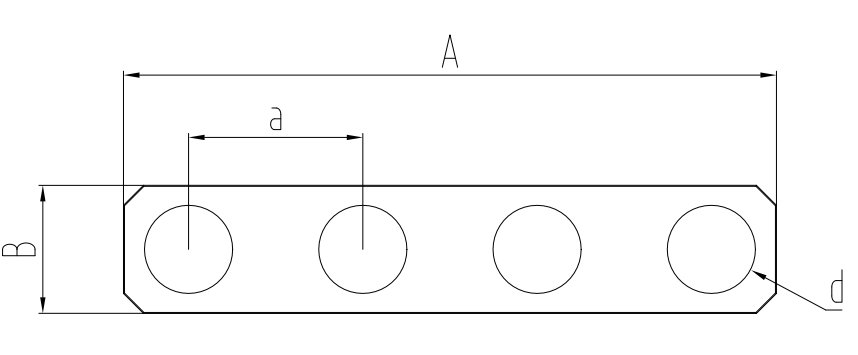

Hopper Magnets RS1 Line Drawing

Model No.

Dimension(mm)

Bar Qty (pcs)

Code No

A

a

B

d

D

RS1

163

43.5

32

22

192

4

5510210013
