Shallow Pot Magnet SWNB

SWNB Series pot magnets are made from stamping steel cup and Neodymium magnets, with Ni coating, bore and plastic filled. Room working temperature.

  • shallow pot magnet swnb

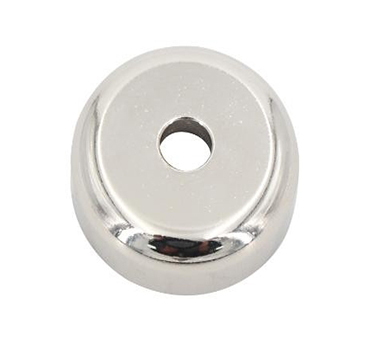

  • souwest magnetec swnb shallow pot magnet
  • shallow pot magnet swnb
  • souwest magnetec swnb shallow pot magnet

Specification of Shallow Pot Magnet SWNB

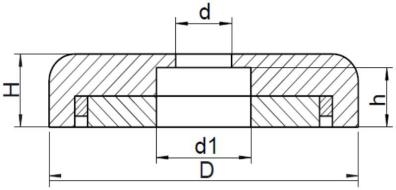

Shallow Pot Magnet SWNB Line DrawingLine Drawing Shallow Pot Magnet SWNB

    Model No

Dimension (mm)

Weight (g)

Force (kg)

D

d

d1

H

SWNB12

12

3.5

6.5

4.5

4

2

SWNB16

16

3.5

6.5

5

7

5

SWNB20

20

4.5

8

7

13

10

SWNB25

25

5.5

9

8

19

20

SWNB32

32

5.5

9

8

38

30

SWNB36

36

6.5

11

8

48

40

SWNB42

42

6.5

11

8.6

70

60

SWNB48

48

8.5

15

11

115

70

SWNB60

60

8.5

15

15

240

150

SWNB75

75

10.5

18

18

515

220
