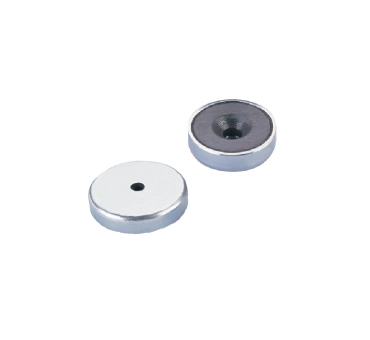

Shallow Pot Magnet SWF4

SWF4 Series pot magnets are made from stamped steel cups and Disc ferrite magnets, with a counterbore, Zn coating and plastic filled. Room working temperature.


  • shallow pot magnet swf4
  • shallow pot magnet swf4

Specification of Shallow Pot Magnet SWF4

Shallow Pot Magnet SWF4 Line Drawing

MODEL NO

Dimensions(mm)

Weight(g)

Force(N)

D

H

d1

d2

SWF4-16

16

4.5

3.5

6.5

4

14

SWF4-20

20

6

4.2

8.6

9

27

SWF4-25

25

7

5.5

10.4

16

36

SWF4-32

32

7

5.5

10.4

27

72

SWF4-40

40

8

5.5

10.4

53

90
