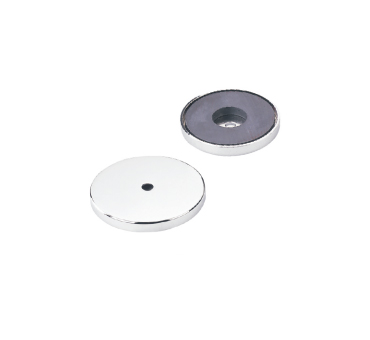

Shallow Pot Magnet SWF7

SWF7 Series pot magnets are made from stamped steel cups and Disc ferrite magnets, with a bore, Zn coating and plastic filled. Room working temperature.

  • shallow pot magnet swf7
  • shallow pot magnet swf7

Specification of Shallow Pot Magnet SWF7

Shallow Pot Magnet SWF7 Line Drawing

MODEL NO

Dimensions(mm)

Weight(g)

Force(N)

D

H

d1

SWF7-20

30.73

4.83

3.3

18

13

SWF7-40

36.32

6.86

4.83

35

53

SWF7-50

51.82

7.62

4.83

68

110

SWF7-60

60.71

8.89

6.86

110

180

SWF7-70

68.07

9.65

7.11

159

290

SWF7-75

71.37

9.4

6.86

175

300

SWF7-80

81.28

10.67

7.11

237

425

SWF7-85

98.39

12.95

9.65

404

490

SWF7-90

123.95

12.45

12.7

557

800
