Hopper Magnets SD1

Hopper magnets for different square with two layers.

  • grate magnets sd1
  • grate magnets sd1

Specification of Hopper Magnets SD1


Hopper Magnets for different Square hoppers, two layers from sus304 stainless steel and ferrite magnets or Rare earth magnets, Tube diameter 22mm, Tube diameter 22mm, Magnetic strength and  Max working temperature as followed:

□2700 GS + 150℃.   □6000GS+ 80℃.   □6000GS+ 150℃

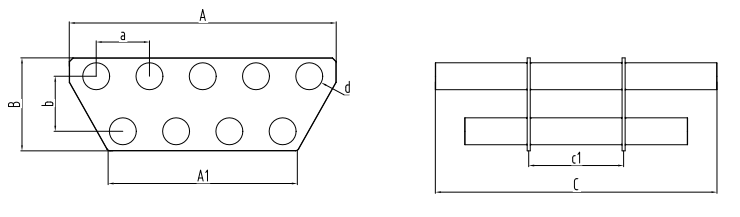

Hopper Magnets SD1 Line Drawing

Model No.Dimension(mm)Bar Qties (pcs)Code NoSketch
AaBbCc1d
SD112043.59045116.554.522555102110011Hooper Magnets SD1 Pic
