Magnetic Tool Holder

Magnetic tool holder is mainly made from 3 kinds of materials: iron, alloy, and plastic.

  • magnetic tool holder plastic shell
  • magnetic tool holder iron shell
  • magnetic tool holder plastic shell mth 2
  • magnetic tool holder aluminum alloy shell
  • magnetic tool holder plastic shell
  • magnetic tool holder iron shell
  • magnetic tool holder plastic shell mth 2
  • magnetic tool holder aluminum alloy shell

Specification of Different Magnetic Tool Holder Models


Magnetic tool holder, iron shell

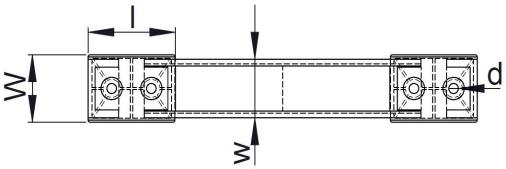

Magnetic Tool Holder Iron Shell Structure Drawing

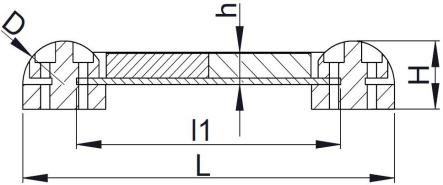

Magnetic Tool Holder Iron Shell StructureMagnetic Tool Holder Iron Shell Line Drawing


Model

Dimension (mm)

Weight (g)

L

I1

I

W

w

H

h

D

d

MTH8"

250

8"

41

30

24

28

14

40.5

4.5

300

MTH12"

350

12"

41

30

24

28

14

40.5

4.5

500

MTH18"

500

18"

41

30

24

28

14

40.5

4.5

760

MTH24"

650

24"

41

30

24

28

14

40.5

4.5

1020

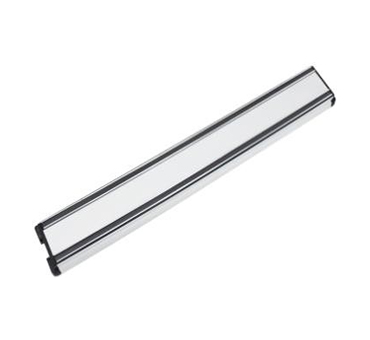

Magnetic tool holder, aluminum alloy shell

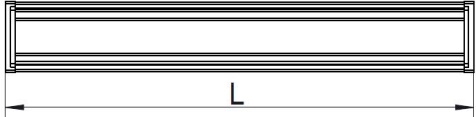

Magnetic Tool Holder Aluminum Alloy Shell Line DrawingMagnetic Tool Holder Aluminum Alloy Shell Structure


Magnetic Tool Holder Aluminum Alloy Shell Line Drawing Picture


Model

Dimension (mm)

Weight (g)

L

H

W

MTH315

315

45

20

267

MTH365

365

45

20

310

MTH415

415

45

20

336

MTH465

465

45

20

380

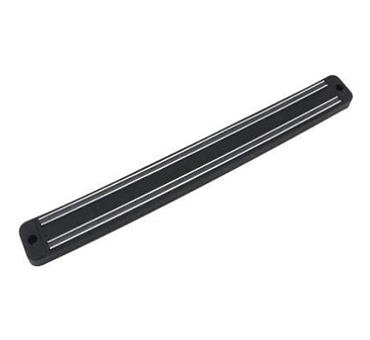

Magnetic tool holder, plastic shell-MTH-1

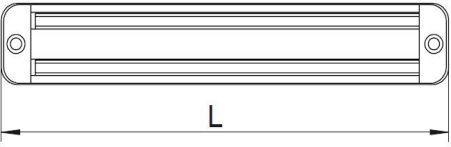

Magnetic Tool Holder Plastic Shell-MTH-1 Line DrawingMagnetic Tool Holder Plastic Shell-MTH-2 Structure


Model

Dimension (mm)

Weight (g)

L

H

W

MTH200-1

200

35

11

152

MTH300-1

300

35

11

216

MTH333-1

333

35

11

236

MTH486-1

486

35

15

428

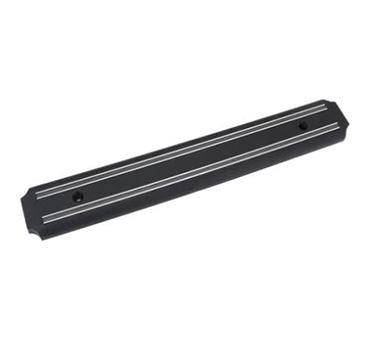

Magnetic tool holder, plastic shell-MTH-2

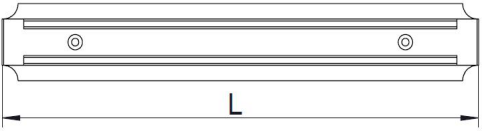

Magnetic Tool Holder Plastic Shell-MTH-2 Line Drawing Magnetic Tool Holder Plastic Shell-MTH-2 Structure

Model

Dimension (mm)

Weight (g)

L

H

W

MTH200-2

200

48

13

146

MTH330-2

330

48

13

272

MTH380-2

380

48

13

320

MTH555-2

555

48

13

495
