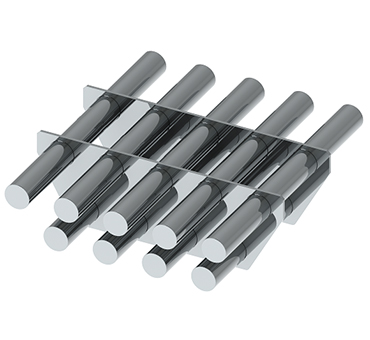

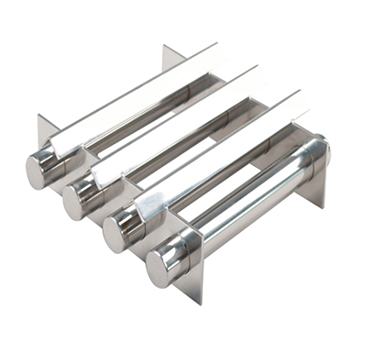

Hopper Magnets SD2

Magnetic filter bars with two layers.

  • grate magnets sd2
  • souwest magnetech grate magnets sd2
  • grate magnets sd2 souwest magnetech
  • grate magnets sd2
  • souwest magnetech grate magnets sd2
  • grate magnets sd2 souwest magnetech

Specification of Hopper Magnets SD2

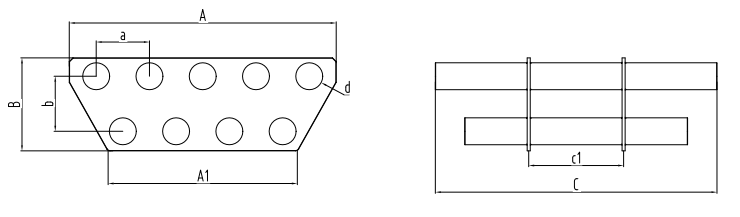

Hopper Magnets SD2 Line Drawing

Model No.

Dimension(mm)

Bar Qty (pcs)

Code No

Sketch

A

A1

a

B

b

C

c1

d

SD2

175

110

45

76

45

183

55

22

7

5510210010

Hopper Magnets SD2 Sheet
