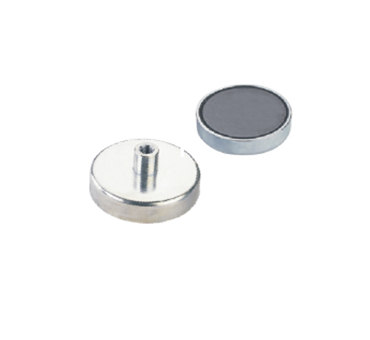

Magnet Threaded SWF2

SWF2 Series pot magnets are made from stamping steel cup and Disc ferrite magnets, with screwed bush, Zn coating and plastic filled. Room working temperature.

  • threaded neodymium magnets swf2
  • threaded neodymium magnets swf2

Specification of Magnet Threaded SWF2


Magnet Threaded SWF2 Line Drawing

MODEL NO

Dimensions(mm)

Weight(g)

Force(N)

D

H

d

L

M

SWF2-10

10

4.5

6

11.5

3

3

4

SWF2-13

13

4.5

6

11.5

3

5

10

SWF2-16

16

4.5

6

11.5

3

6

18

SWF2-20

20

6

6

13

3

11

30

SWF2-25

25

7

8

15

4

22

40

SWF2-32

32

7

8

15

4

32

80

SWF2-36

36

7.7

8

16

4

45

100

SWF2-40

40

8

8

16.5

4

60

125

SWF2-47

47

9

8

17

4

90

180

SWF2-50

50

10

8

18.5

4

110

220

SWF2-57

57

10.5

8

18.5

4

145

280

SWF2-63

63

14

15

30

8

240

350

SWF2-80

80

18

20

34

10

520

600

SWF2-100

100

22

22

43

12

940

900

SWF2-125

125

26

25

50

14

1720

1300
