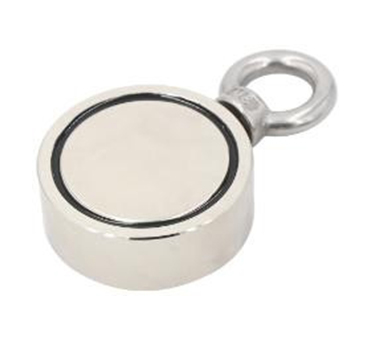

Double Sided Fishing Magnet

Double Sided Fishing Magnet is specifically designed for magnet fishing. You don't have to worry about the orientation of the magnet in the water as each side provides at least 70KG of pulling power.

  • fishing magnet series swnm 2
  • fishing magnet series swt
  • fishing magnet series swnm 3
  • fishing magnet series swnm
  • fishing magnet series swnm 1
  • fishing magnet series swnn
  • fishing magnet series swnj
  • fishing magnet series swnm 2
  • fishing magnet series swt
  • fishing magnet series swnm 3
  • fishing magnet series swnm
  • fishing magnet series swnm 1
  • fishing magnet series swnn
  • fishing magnet series swnj

Is a Double Sided Fishing Magnet Better for Magnet Fishing?

The new design provides more versatility by allowing it to be used as a double sided, or single side magnet. The eyebolt can screw into the side of the casing, or through the magnet face. Using this magnet in the single sided configuration will provide a stronger hold since the user is pulling perpendicular to the target.


Structures of Double Sided Fishing Magnet

  1. Have another eyelet.

  2. Made of steel plate.

  3. Coated with Ni-Cu-Ni.

  4. NdFeB is the strongest and most durable permanent magnet available.

Specification of Double Sided Fishing Magnet

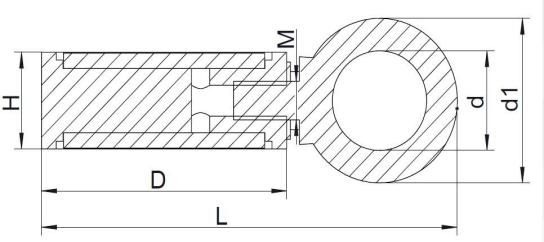

Fishing Magnets Series SWNM3 Line DrawingLine Drawing of Fishing Magnets Series SWNM3

Model No

Dimension (mm)

Weight (g)

Force (kg) At Single Side

D

H

L

d

d1

M

SWNM48-3

48

18

86

20

35

M8

280

80kg/175lb

SWNM60-3

60

22

98

20

35

M8

420

135kg/300lb

SWNM67-3

67

25

111

25

42

M10

720

170kg/380lb

SWNM75-3

75

25

119

25

42

M10

885

220kg/500lb

SWNM94-3

94

28

138

25

42

M10

1540

300kg/650lb

SWNM116-3

116

32

167

29

47

M12

2435

450kg/1000lb

SWNM136-3

136

34

187

29

47

M12

3355

600kg/1350lb
