Shaped Hooks

Various shapes of hooks to match the magnet threaded of your choice.

  • steel hook em
  • steel eyebolt fm
  • stainless steel eyebolt ring cm
  • stainless steel eyebolt ring dm
  • stainless steel screw
  • steel hook em
  • steel eyebolt fm
  • stainless steel eyebolt ring cm
  • stainless steel eyebolt ring dm
  • stainless steel screw

Specifications of Different Shaped Hook Accessories


Steel Hook, with thread and Nickel Coating

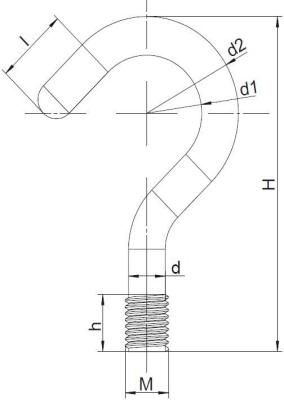

Steel Hook EM Line Drawing


MODEL NO

Dimension(mm)

Weight (g)

d

d2

d1

H

h

l

M

EM3

2.6

13.2

8

25.5

5

6

M3

1.6

EM4

3.4

14.8

8

28

6

7

M4

3.1

EM5

4.3

18.6

10

34.5

7

8

M5

5.9

EM6

5.1

22.3

12.1

37.5

7

11

M6

9.9

EM8

7

30

16

47.5

9

12

M8

22.8

EM10

9

38

20

57.8

11

19

M10

47

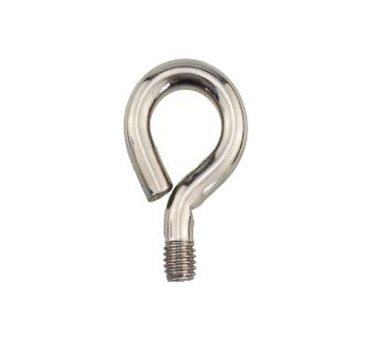

Steel Eyebolt, with thread and Nickel Coating

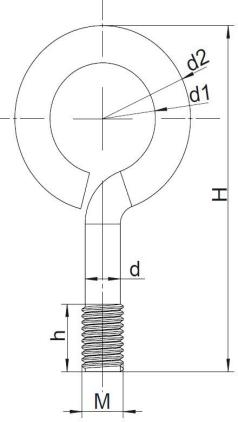

Steel Eyebolt StructureSteel Eyebolt Line Drawing


MODEL NO

Dimension(mm)

Weight (g)

d

d1

d2

H

h

M

FM3

2.6

4

6.6

25.5

5

M3

1.9

FM4

3.4

4

7.4

28

6

M4

3.5

FM5

4.3

5

9.3

34.5

7

M5

7.2

FM6

5.1

6

11.2

37.5

7

M6

11.3

FM8

7

8

15

47.5

9

M8

27.4

FM10

9

15

24

68

11

M10

68.3

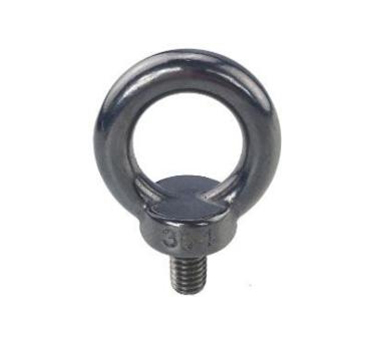

Stainless Steel Eyebolt Ring, with male thread

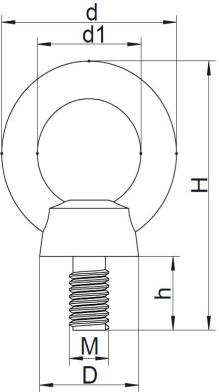

Stainless Steel Eyebolt Ring CM StructureStainless Steel Eyebolt Ring CM Line Drawing


MODEL NO

Dimension(mm)

Weight (g)

d

d1

d2

h

H

M

CM5

14.5

23.2

13.4

11.2

34.8

M5

15

CM6

15

26.5

16

11.5

41

M6

20.6

CM8

18

34.5

19.5

14.5

51

M8

40.6

CM10

22

41.5

25

18

60.5

M10

73.2

CM12

26.5

47

29

20

68

M12

112

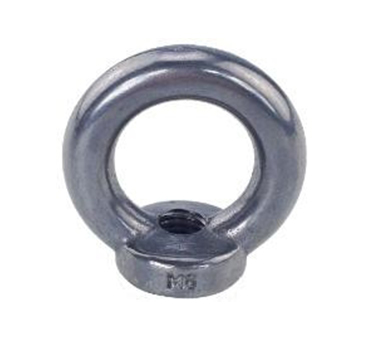

Stainless Steel Eyebolt Ring, with female thread hole

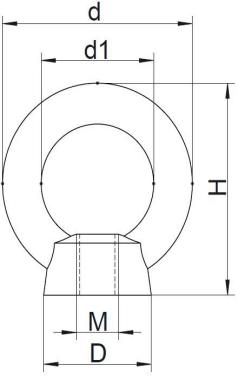

Stainless Steel Eyebolt Ring DM StructureStainless Steel Eyebolt Ring DM Line Drawing

MODEL NO

Dimension(mm)

Weight (g)

D

d

d1

H

M

DM4

8.5

19

10

19

M4

5.2

DM5

11

22.5

12

23

M5

9.8

DM6

14.5

27

15.5

29

M6

18.5

DM8

18.5

34.5

19.5

34

M8

36

DM10

21..5

41

24.5

41

M10

57.8

DM12

27.5

50

27.5

47.5

M12

99.7



Stainless Steel Screw

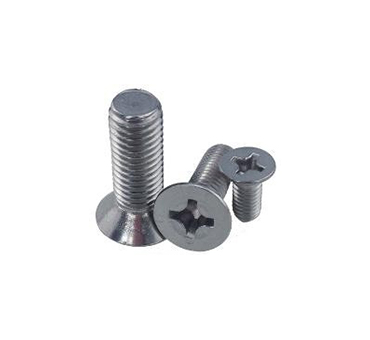

Stainless Steel Screw StructureStainless Steel Screw Line Drawing

MODEL NO

Dimension(mm)

Weight (g)

D

L

M

M5

9

12

M5

2

M6

11.5

17

M6

2.9

M8

15

20

M8

7.7

M8

15

25

M8

9

M10

17.5

30

M10

17.9

M12

21.5

35

M12

30.5
