Hopper Magnets SRM

Small hopper magnets.

  • grate magnets srm
  • souwest magnetech grate magnets srm 1r
  • grate magnets srm 1r souwest magnetech
  • grate magnets srm
  • souwest magnetech grate magnets srm 1r

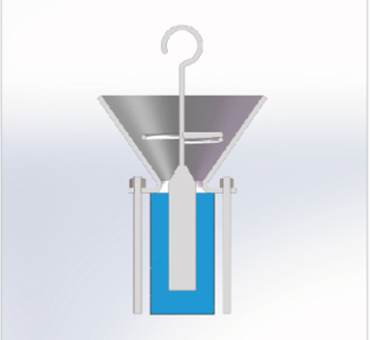

  • grate magnets srm 1r souwest magnetech

Advantages of Grate Magnets SRM

  • Magnetic strength 9000Gs with max working temp   80 ℃ or  150℃
    Magnetic strength 9000Gs with max working temp 80 ℃ or 150℃
  • Easy be used for removing ferrous contaminations from materials
    Easy be used for removing ferrous contaminations from materials
  • Made from stainless steel SUS304
    Made from stainless steel SUS304

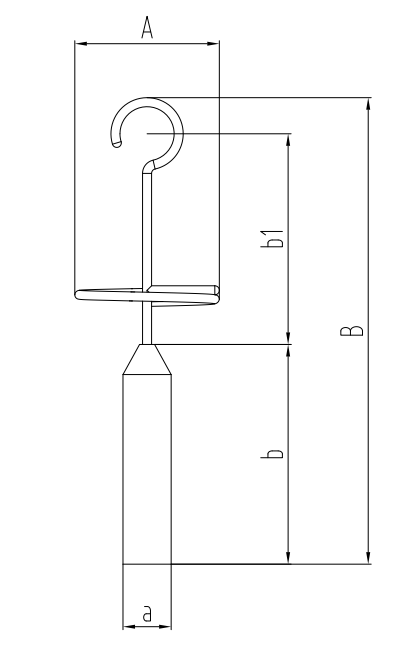

Specification of Grate Magnets SRM



Model No.

Dimension(mm)

Bar Qties (pcs)

Code No

A

a

B

b

b1

SRM-1

45

16

155

73

71

1

516069001

SRM-2

65

16

155

73

71

1

516069002

SRM-3

45

25

200

120

69

1

516069003

SRM-4

65

25

200

120

69

1

516069004

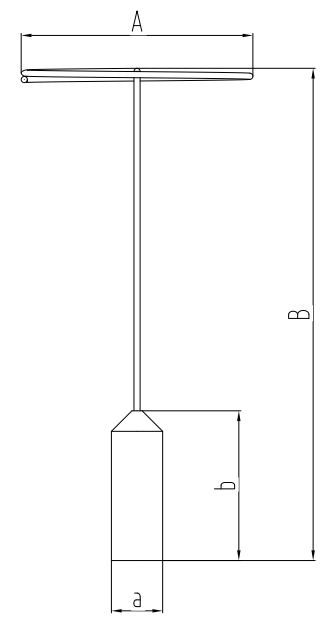

Model No.

Dimension(mm)

Bar Qties (pcs)

A

a

B

b

SRM-1R

48

16

155

73

1
