Rubber Coated Pot Magnet STA

STA Series rubber covered magnets are made from NdFeB magnets and steel cups, rubber covered, and one counterbore. Room working temperature.

  • rubber coated pot magnet sta
  • rubber coated pot magnet sta

Specification of Rubber Coated Pot Magnet STA

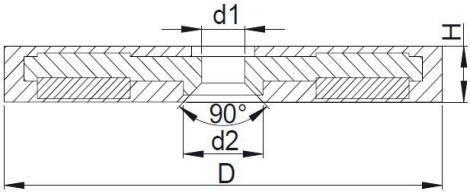

Rubber Coated Pot Magnet STA Line DrawingLine Drawing Rubber Coated Pot Magnet STA

Model No

Dimension (mm)

Weight (g)

Force (kg)

D

d1

d2

H

STA22

22

4.5

8.6

6

8

2

STA34

34

4.5

8.6

8

20

6

STA43

43

4.5

8.6

6

27

9

STA57

57

5.5

11

8

77

18

STA66

66

6.5

12

8

100

20

STA88

88

8.5

19

8.5

182

42
