Name: Magnetic Drawer
Brand: NINGBO SOUWEST MAGNETECH DEVELOPMENT CO.,LTD.

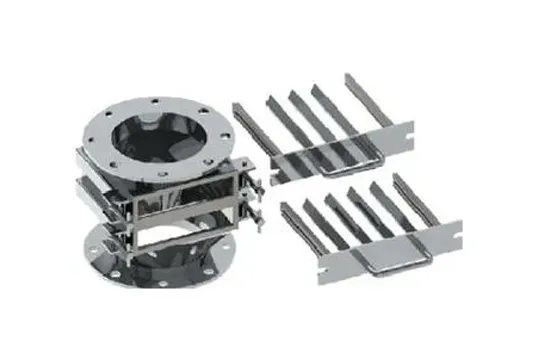

Specification of Magnetic Drawer

Equipment Name	Drawer Magnetic Separator	Drawer Magnetic Separator	Drawer Magnetic Separator
Model Type	Rail-mounted Standard	High-Temperature Resistant	Easy-Clean
Operating Temperature	Ambient (≤80°C)	100°C	Ambient (≤80°C)
Design Temperature	100°C	120°C	100°C
Magnetic Strength	13,000±500 GS	13,000±500 GS	Max 10,000±500 GS
Max Pressure	≤0.1 MPa	≤0.1 MPa	≤0.1 MPa
Flow Compatibility	Compatible Flow Rates	Compatible Flow Rates	Compatible Flow Rates
Connection Sizes	DN100~DN300	DN100~DN300	DN100~DN300
Optional Parameters	Sleeve Options: With/Without Sleeve (Easy-Clean/High-Temp), Material: 316L/304 Stainless Steel, Magnet Shape: Round/Teardrop, Number of Layers/Rods: Customizable, Cleaning Door: Pressure-Resistant Seal	(Same options apply)	(Same options apply)
