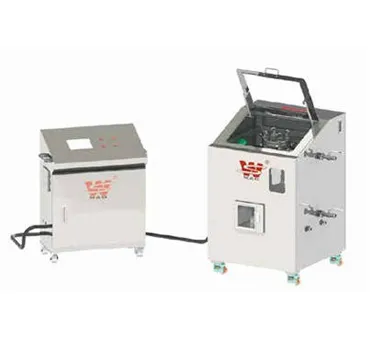

Laboratory-Grade Miniature Electromagnetic Iron Remover

Request A Quote

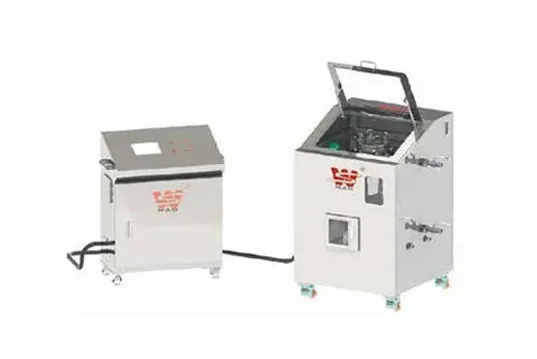

Specification of Laboratory-Grade Miniature Electromagnetic Iron Remover

Specification of Laboratory-Grade Miniature Electromagnetic Iron Remover
CategoryParameter (English)Value
ModelEMS-100-W3
Core Magnetic StrengthMagnetism (with screen) / Gauss16,000~17,000 (Max. Approx.)
Coreless Magnetic StrengthMagnetism (without screen) / Gauss3,000 (±100) (Max. Approx.)
Host WeightHost Weight / kg800
Screen DiameterNominal Diameter / mmφ95
Screen QuantityMax. Number of Screens24
Insulating Oil VolumeOil Volume / L50
Coolant Pump PowerCooling Pump Power / kW0.46
Power SupplyPower SourceAC380V, 3P/50Hz
Rated Excitation VoltageRated Exciting VoltageDC37V (cold state)
Rated Excitation PowerRated Exciting Power / kW2.4 (cold state)
Duty CycleWorking DutyS1 (Continuous)
Cabinet ProtectionControl Cabinet IP GradeIP54
Cabinet DimensionsCabinet Size (L×W×H) / mm800×500×1100
Cabinet WeightControl Cabinet Weight / kg115
Total WeightFull Unit Weight / kg915
