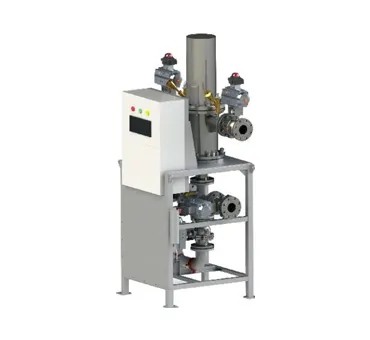

Name: Automatic Fluid Magnetic Filter-Single
Brand: NINGBO SOUWEST MAGNETECH DEVELOPMENT CO.,LTD.

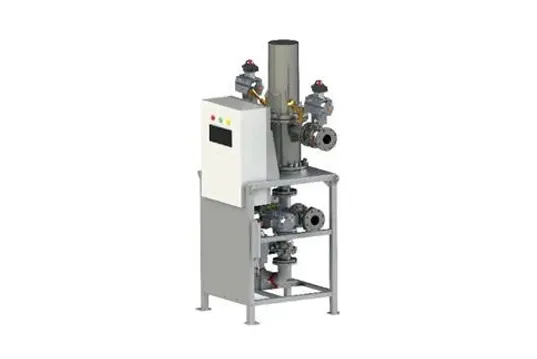

Specification of Automatic Fluid Magnetic Filter-Single

No.	Item	Content (English Translation)
1	Equipment Name	Automatic Pipeline Slurry Permanent Magnetic Separator
2	Model	LAS-M-7
3	Design Working Pressure	1.0MPa
4	Design Working Temperature	≤80℃
5	Material	Contact Parts: SUS304, Non-contact: SUS304 (Copper/zinc-free components; Cu/Zn content ≤0.5% for contact parts, ≤2% for non-contact parts)
6	Seals	Silicone
7	Surface Requirements	Internal: Polished; External: Sandblasted
8	Welding Standards	Sanitary-grade Welding
9	Connection	DN50-DN80 Flange-HG/T20592-2009 PN10 PLRF
10	Flow Rate	8~20m³/h
11	Magnetic Rods	Quantity: 7 rods; Surface Magnetism ≥12,000GS; Sleeve Surface Magnetism ≥9,000GS; Rod Length: 400mm
12	Cleaning Solution per Cycle	~60L per cycle; Cleaning Water Pressure ≥0.3MPa; Temperature ≤80℃
13	Compressed Air per Cycle	Air Supply: 0.5-0.7MPa; Connection Hose: φ10; Peak Air Consumption: 2,000L/min; Consumption per Cleaning Cycle: ~650L
14	Power Consumption	Actual Operating Power: ~75W
15	Control Cabinet	Integrated with Main Unit (Approx. 800×600×250mm), including PLC and Touch Screen; Pre-wired Ports for DCS System Connection
16	Control System	Standard Souwest Control System: Manual/Auto Mode, Local/Remote Operation Switching; Airtac Pneumatic Components; Siemens PLC; Weintek Touch Screen; Other Main Components: Schneider, Omron, etc.
17	Foreign Object Protection	Lifting rings, door handles, keys, keyholes, and cabinet lotus leaves are prohibited from using copper-zinc components. The control cabinet has a protection rating of IP54.
