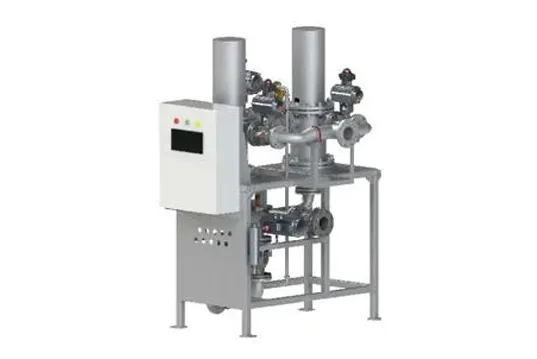

Name: Automatic Fluid Magnetic Filter - Double
Brand: NINGBO SOUWEST MAGNETECH DEVELOPMENT CO.,LTD.

Specification of Automatic Fluid Magnetic Filter - Double

No.	Item	Content (English Translation)
1	Equipment Name	Automatic Pipeline Slurry Permanent Magnetic Separator
2	Model	LAS-2M-7
3	Design Working Pressure	1.0MPa
4	Design Working Temperature	≤80℃
5	Material	Contact Parts: SUS304 Non-Contact Parts: SUS304 (Copper/Zinc-free materials; Cu/Zn content ≤0.5% for contact parts, ≤2% for non-contact parts)
6	Seals	Silicone
7	Surface Requirements	Internal: Polished External: Sandblasted
8	Welding Standards	Sanitary-Grade Welding
9	Connection	DN50~DN100 Flange-HG/T20592-2009 PN10 PLRF
10	Flow Rate	10~40m³/h
11	Magnetic Rods	Quantity: 7+7 rods Surface Magnetism: ≥12,000GS Sleeve Surface Magnetism: ≥9,000GS Rod Length: 400mm
12	Cleaning Solution per Cycle	~100L/cycle Cleaning Water Pressure: ≥0.3MPa Temperature: ≤80℃
13	Compressed Air per Cycle	Air Supply Pressure: 0.5~0.7MPa Hose Connection: φ10 Peak Consumption: 2,000L/min Consumption per Cycle: ~1,200L
14	Power Consumption	Actual Operating Power: ~75W
15	Control Cabinet	Integrated Control Box (Approx. 800×600×250mm) Includes PLC & Touchscreen Pre-wired DCS interface
16	Control System	Standard Souwest Control System - Manual/Auto Operation - Local/Remote Switching - AirTac Pneumatics - Siemens PLC - Weintek Touchscreen - Schneider/Omron Components
17	Foreign Object Protection	Lifting rings, door handles, keys, keyholes, and cabinet lotus leaves are prohibited from using copper-zinc components. The control cabinet has a protection rating of IP54.
