Souwest Magnetech Insert Magnet

By combining the rubber body with the integrated magnet, the insert magnet can be produced in almost any geometry. Powerful integrated magnets hold the insert in the exact position. Insert magnets for installation and assembly from Souwest Magnetech have been used in the precast concrete industry for many years.

  • insert magnet swq

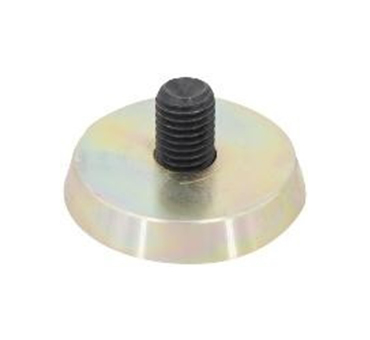

  • insert magnet swrm

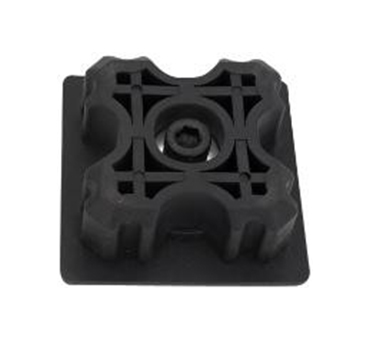

  • insert magnet swlns
  • insert magnet swq
  • insert magnet swrm
  • insert magnet swlns
Request A Quote

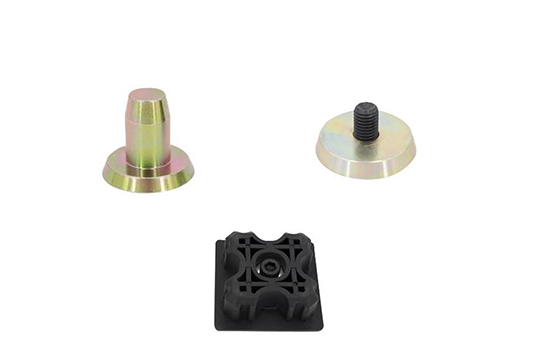

Applications of Insert Magnet

Applications of Insert Magnet

Souwest Magnetech insert magnets series are designed for various embedded parts of precast concrete. During the precast concrete production process, we need to embed various switch holes, pile holes, and connection or lifting sockets. Using our insert magnets to fix the embedded parts, magnets secure the parts against sliding and slipping. Our products are durable, cost-saving, easy to use, and efficient.

The insert magnet series has been designed and developed for various pre-cast concrete plug-ins. During the production of precast concrete, we need to embed various switch holes, pile holes, connections or lifting sockets. Use Souwest Magnetech insert magnets to hold the pre-cast pieces in place and prevent sliding and slipping. Our products are durable, easy to use and cost-saving.


Maintain and store of Insert Magnet

  • Do not hit it violently or with hard tools to avoid the insert magnets damaging.
    Do not hit it violently or with hard tools to avoid the insert magnets damaging.
  • The touching surface should be kept clean and smooth, and there should be no corrosive environment.
    The touching surface should be kept clean and smooth, and there should be no corrosive environment.
  • The insert magnets should be cleaned after use.
    The insert magnets should be cleaned after use.
  • The maximum working and storage temperature should be below 80°C.
    The maximum working and storage temperature should be below 80°C.

Different Models of Insert Magnet

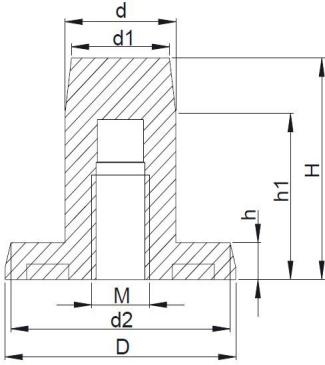

Insert Magnet SWQ Line Drawing  Line Drawing of Insert Magnet SWQ

ModelDimension (mm)Weight (g)Force (Kg)
Ddd1d2Hhh1M
SWQ40-184018163536626M1010030
SWQ40-194019163536626M1010530

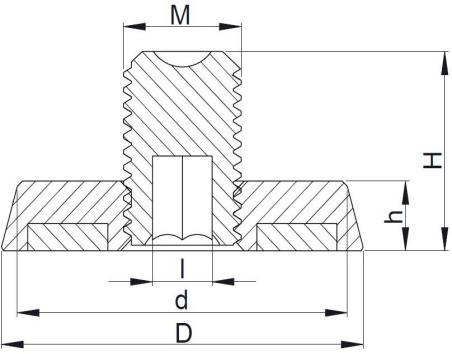

Insert Magnet SWRM Line Drawing Line Drawing of Insert Magnet SWRM


ModelDimension (mm)Weight (g)Force (Kg)
DdHhIM
SWR50-M1050453085M1013060
SWR50-M1250453086M1213060
SWR50-M1450453086M1413560
SWR50-M1650453088M1613560
SWR54-M185449301010M1816560
SWR54-M205449301010M2016560
SWR54-M245449301012M2417060

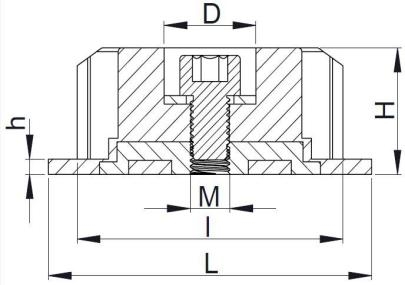

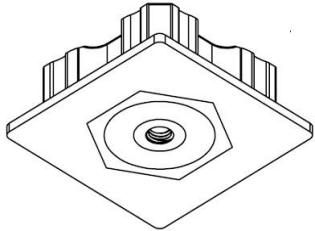

Insert Magnet SWLNS Line Drawing Line Drawing of Insert Magnet SWLNS

Model

Dimension (mm)

Weight (g)

Force (Kg)

L

l

H

D

h

M

SWLNS85

84.5

70

31.5

24

4

M10

260

60



To Know More About Souwest Magnetech Magnets, Please Contact Us!
To Know More About Souwest Magnetech Magnets, Please Contact Us!
